APEX

As-Built Documentation Overview

Document Package Contents

Section titled “Document Package Contents”
DocumentDescriptionStatus
Design DocumentComprehensive architecture designGenerated
Operations RunbookDay-2 operational proceduresGenerated
Resource InventoryComplete deployed resource listingGenerated
Backup & DR PlanRecovery procedures and failoverGenerated
Compliance MatrixSecurity controls mappingGenerated
As-Built Cost EstimateDeployed pricing baselineGenerated
As-Built DiagramRendered architecture snapshotPreserved

Source Artifacts

Section titled “Source Artifacts”

These documents were generated from the following agentic workflow outputs:

ArtifactSourceGenerated
Requirements01-requirements.md2026-04-14
WAF Assessment02-architecture-assessment.md2026-04-14
Cost Estimate03-des-cost-estimate.md2026-04-14
Implementation Plan04-implementation-plan.md2026-04-14
Bicep Code05-implementation-reference.md2026-04-14
Deployment Summary06-deployment-summary.md2026-04-15
%%{init: {'theme':'neutral'}}%%
graph LR
    S1["01 Requirements"] --> S7a["07 Design Doc"]
    S2["02 Architecture"] --> S7a
    S2 --> S7c["07 Runbook"]
    S3["03 Cost Estimate"] --> S7e["07 Cost (As-Built)"]
    S4["04 Impl Plan"] --> S7d["07 Resource Inventory"]
    S5["05 Impl Reference"] --> S7d
    S6["06 Deployment"] --> S7c
    S6 --> S7b["07 Compliance Matrix"]
    style S7a fill:#0078D4,color:#fff
    style S7b fill:#0078D4,color:#fff
    style S7c fill:#0078D4,color:#fff
    style S7d fill:#0078D4,color:#fff
    style S7e fill:#0078D4,color:#fff

Project Summary

Section titled “Project Summary”
AttributeValue
Project Namemalta-catering
Environmentdev
Primary Regionswedencentral
ComplianceGDPR
Monthly Cost$139.06/month baseline, medium confidence

Architecture Overview — Cost Distribution

Section titled “Architecture Overview — Cost Distribution”
CategoryMonthly Cost (USD)Share
Compute64.9746.7%
Data Services50.6936.5%
Networking23.4016.8%

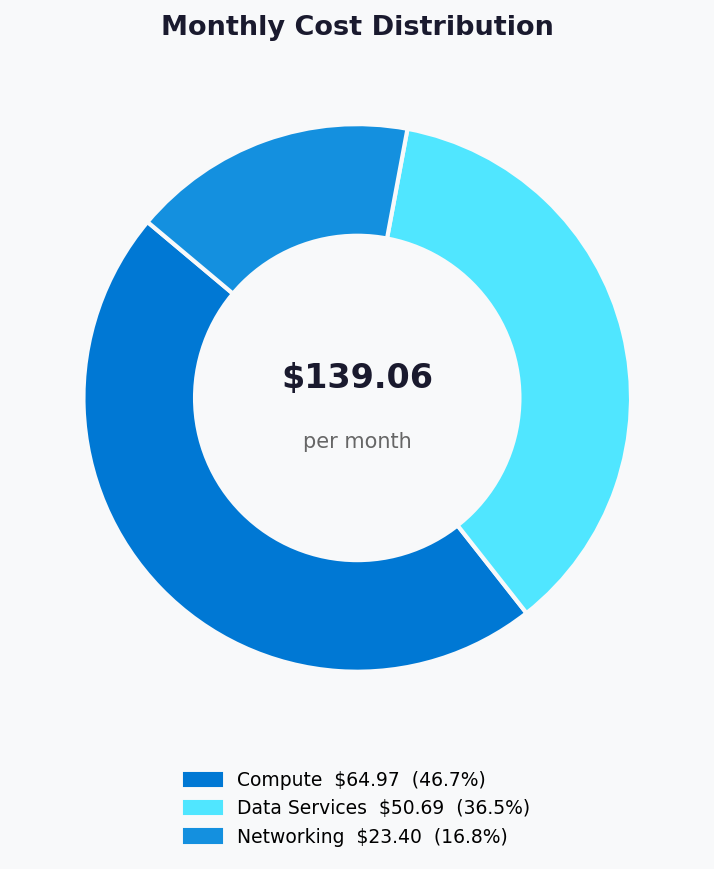

Monthly Cost Distribution

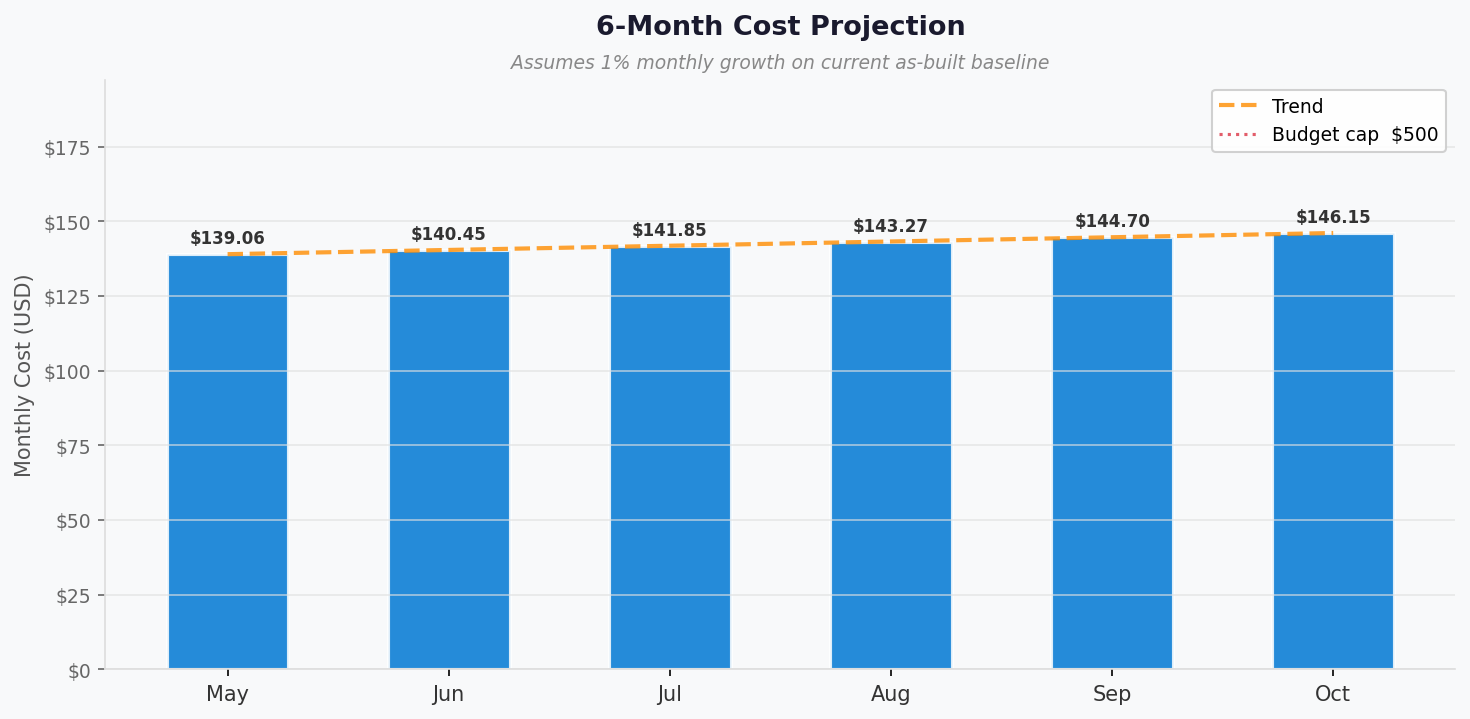

6-Month Cost Projection

Section titled “Related Resources”
  • Infrastructure Code: infra/bicep/malta-catering/
  • ADRs: 03-des-adr-0001-app-service-s1-compute.md, 03-des-adr-0002-table-storage-persistence.md, 03-des-adr-0003-public-network-posture.md
  • External: Azure Well-Architected Framework | AVM Index
