Run the workflow

Overview

APEX helps you turn requirements into an Azure infrastructure plan, Bicep or Terraform code, and deployment evidence. The step walkthrough below explains the retained domain workflow. The current body migration keeps named main and leaf agents. The broader role-consolidation proposal is separate.

The owner-reported October 18 body migration is in progress, not a final source or runtime certification. Main agents retain direct selection and native questions. Active definitions omit UI handoffs: metadata and no longer require worker-ready handshakes, nonce exchanges, verifier commands, or log preflight. See the current body contract for native task handling, observed limitations, and preserved review requirements.

Start with the quickstart if you have not created a repository from the Accelerator template.

Proposed routine engineering and owner boundary

The target runtime is the Copilot session target, Copilot SDK/Agent Host, inside VS Code only. Local, CLI, cloud-agent, and other IDE product runtimes are out of scope. Running a CLI tool inside an authorized VS Code task does not change that.

The proposal uses an optional short APEX engineering lead or native Agent for routine repository work, on-demand domain skills, a native bounded independent reviewer, and one separately permissioned deploy operator with Bicep and Terraform adapters. See the planning section for the PRD, backlog, roadmap, retained contracts, and issue mapping.

For example, the owner can scope a routine documentation fix to an approved feature branch during the authorized migration. Native Autopilot would edit, test, repair within bounds, commit, push, update the PR or issue, and address scoped reviewer feedback without repeatedly asking for permission. It may answer blocking questions within that scope. This describes the intended behavior, not an accepted runtime result. Packet progression requires evidence for each packet; permission to proceed cannot stand in for pilot or final release acceptance.

A successful ask_user call or form response is not proof of a human decision; Autopilot may have supplied it. APEX_UNATTENDED=1 neither proves native Autopilot selection nor grants approval. Consequential permission, expense, security, and requirements changes and deployment approval require a genuine independent owner boundary. Native agent roles and tool allowlists alone are not credential or security isolation.

The owner also retired APEX .github/hooks/ runtime hooks. Do not restore or replace them as part of setup. Their tool-call protection is gone, not silently replaced by native tool restrictions. Native permission boundaries still need verification. Azure security, governance, SKU, AVM, and cost-provenance requirements remain in force. This retirement does not remove Git Lefthook, pre-commit checks, secret scanning, CI, or azd lifecycle hooks. See the runtime-hook retirement record.

Formalized workflow engine

The earlier candidate’s workflow graph records step dependencies, expected artifacts, and review defaults for that design. apex-recall records project state. Neither a graph edge nor a completed-state field grants permission to deploy. The proposal retains durable decisions, atomic writes, and historical compatibility. Native session SQL and todos do not replace cross-project approval storage.

Agent architecture

Requirements capture and revision

Select 02-Requirements to establish workload goals, constraints, budget, region, and IaC choice. It asks missing material questions directly through its native question tool; you do not need to route those questions through Orchestrator. Capture known constraints and distinguish workload intent from implementation details. The guided discovery candidate adds menus, Greenfield branching, and answer preservation. Exact runtime choices, IDs, and tag bindings can remain explicit unknowns for the downstream step that owns them when intent is clear. That step must resolve them before its consuming gate. Deferral is not approval or permission to guess. Later changes must return to the affected step rather than leave downstream artifacts describing different requirements.

Review finalization and recovery

On October 19, the owner approved adapting the existing challenger-review-subagent into one shared read-only structured JSON leaf. Automatic producers, authorized 01-Orchestrator calls, and optional manual 10-Challenger reviews use the same leaf and the existing one-shot-review.md contract. After reloading VS Code so updated agent definitions attached from disk (7735cb43-97f0-4d6e-9a31-8edd63dcc75b), all five mandatory cp-harness-01 reviews completed through this contract and passed strict --verify-cache validation. The site’s generated source and guidance-review pins remain unchanged until post-merge pin refresh.

The interactive review owner captures current review metadata before invoking the actual synchronous native task with APEX_REVIEW. The leaf reads the bounded inputs and returns schema-conforming JSON findings and its verdict. It does not write files, run shell commands, ask questions, or delegate. This reuses the existing agent identity, not a new agent. Active definitions have no model pins, and callers leave model, effort, and context overrides unset.

The review owner records the actual attributed task output centrally through record-review.mjs, producing challenge-findings-*.json. The recorder derives finding IDs and severity counts. Strict schema, freshness, attribution, and provenance validation still follow. New receipts must identify the actual structured leaf and hash both its definition and the shared one-shot contract. Capturing metadata or receiving valid-looking JSON alone does not complete review.

Current manual batch payloads use lenses. The old batch_lenses alias belongs only to historical inputs.

For deep review, set prior_findings to null on the first pass. On later passes, provide a compact array of actual findings. Retain each finding’s ID, severity, claim, and source receipt. Do not supply strings or parent-invented resolutions. Passing prior findings does not resolve them or rewrite their history.

If a delegated producer lacks nested task capability, it returns REVIEW_REQUIRED. Its authorized Orchestrator invokes the same leaf as a sibling task and records the actual result under the existing review budgets and checks. Selecting 10-Challenger is optional, not a required detour or automatic fallback. Built-in rubber-duck retains its critic-prose role. It is neither a mandatory JSON-producing dependency nor an automatic fallback.

The October 18 owner-supplied cp-harness-01 retry reached an earlier sibling reviewer dispatch. Recording then failed because the reviewer ran a shell command that the execution safety check blocked. No review sidecar or approval resulted. That earlier path confirms dispatch for that retry, not a completed review of the new shared-leaf candidate.

On October 19, model-backed tests in Copilot CLI 1.0.98 confirmed custom-agent selection, delegated answer continuation, and an actual parent/sibling review dispatch on a disposable fixture. That reviewer returned prose and reported a configured output-format conflict. The unchanged recorder rejected it, and no valid review receipt resulted. This is a CLI observation, not evidence of the same behaviour in the supported VS Code client.

That failure remains historical evidence. It neither validates nor disproves the new native structured-leaf path. Do not parse critic prose into findings, override the built-in reviewer’s role, substitute an inline self-review, or rewrite a failed attempt to make it pass. Failed commands remain blocking even if later output is JSON. Do not reset counters or treat the cutover as permission to launch another project review.

In earlier pre-reload verification on October 19, an existing VS Code conversation invoked the cached file-output role twice before the window was reloaded. After the owner reloaded the VS Code window (7735cb43-97f0-4d6e-9a31-8edd63dcc75b) and authorized live Azure deployment, the full cp-harness-01 workflow executed Steps 1 → 2 → 3.5 → 4 → 5 → 6 → 7 → Post-Lessons in VS Code Copilot:

Five synchronous challenger-review-subagent dispatches (Step 1 Requirements, Step 2 Architecture, Step 2 Cost Feasibility, Step 3.5 Governance, and Step 4 IaC Plan) returned raw JSON, were recorded via record-review.mjs, and passed validate-challenger-findings.mjs --verify-cache with zero errors.
Live Bicep deployment cp-harness-01-dev-deploy provisioned 32 resources in rg-cp-harness-01-dev (swedencentral) after traversing one step-6b -> step-5b return edge (restorePolicyDays: 6 < deleteRetentionPolicyDays: 7) and passing L3 policy precheck (PROCEED).
Step 7 as-built documentation (07-*.md, $127.69/month with 0.00% drift, and five diagram/chart sets) and 09-lessons-learned.{json,md} (LL-001–LL-004 applied to repository skills, subagents, and validators) completed cleanly.

Historical file-output receipts and historical rubber-duck readers remain compatible. Keep their original bytes, identities, findings, and attempt history. Historical event extractors and receipt readers provide read-only compatibility; legacy schemas without reviewer remain supported. The new recorder publishes structured-leaf receipts only. Do not record new built-in reviewer receipts. Do not relabel historical evidence as a new structured-leaf receipt or rehash it under the new contract. The cutover changes neither the review matrix nor its lenses, step gates, budgets, security requirements, or separate owner approvals. It grants no implicit apply permission.

Requirements review also follows the current workflow stage. It checks business intent, measurable outcomes, contradictions, and security constraints. Documented later-stage design tasks are not defects solely because they remain open. Recommendations must not invent user targets or weaken the security baseline.

Missing reviewer capability or failed or invalid execution evidence stops progress for human recovery, without an automatic reviewer substitution. 10-Challenger remains an optional interactive coordinator for a separately selected manual review, not a required recovery hop. Read findings, resolve the required changes, and obtain the separate owner approval. Review filenames and old approval text do not prove that the current inputs were reviewed. Neither stage completion nor this dispatch correction completes a mandatory review.

If state or index updates fail, follow session recovery instead of resetting JSON fields.

Governance closure

04g-Governance discovers effective policy constraints, including inherited assignments. Reconcile discovered constraints before planning. An empty policy array can skip the reconciliation review; missing access or a failed query does not establish that there are no constraints.

Planning feasibility

05-IaC Planner connects the approved architecture, SKU evidence, and governance constraints to the code-generation contract. Resolve infeasible choices before CodeGen rather than expecting the deployment agent to substitute a service or SKU.

The orchestrator pattern

Select 01-Orchestrator to coordinate approved steps, or select a main step agent directly. Architect, Design, and Governance can ask their own missing material questions. A delegated main worker instead returns USER_INPUT_REQUIRED with request_id, phase, message, requestedSchema.properties, and its missing inputs to the interactive parent. Workers do not call user tools.

For Requirements, the parent sends the complete captured-answer ledger with every new task or supported continuation, not just the latest response. Preserve known answers and explicit unknowns across calls. The parent owns question presentation and review dispatch when the delegated worker cannot invoke the required reviewer.

The historical worker-readiness contract contains conflicting direct-dispatch and pre-dispatch handshake requirements. It is not the current migrated body contract. Active bodies and shared caller guidance no longer require those rituals. Old verifiers remain diagnostic and historical. Native tasks use the available result contract; same-task continuation is possible only when the actual returned handle supports it. One-shot calls do not imply a universal continuation API.

Interactive gates present 00-handoff.md and require human approval before advancing. Required approvals cover the actual action and current scope; unresolved authority stops the run. Preserve apex-recall checkpoints and fresh review evidence. The proposed routine Autopilot scope above does not make ordinary question responses independent owner approval. No UI handoff control is required or promised. Use the native task result or explicitly select the named next agent. The handoff file remains durable evidence, not frontmatter or approval.

The migrated body contract lets 01-Orchestrator dispatch approved main step workers; step workers invoke only their declared leaf subagents (challenger-review-subagent in the approved structured-review candidate, cost-estimate-subagent, and validate/preview subagents). Direct user selection of individual step agents remains supported; note that sending an idle cross-chat message may clear selected-agent metadata, so resume directly in the selected Orchestrator chat.

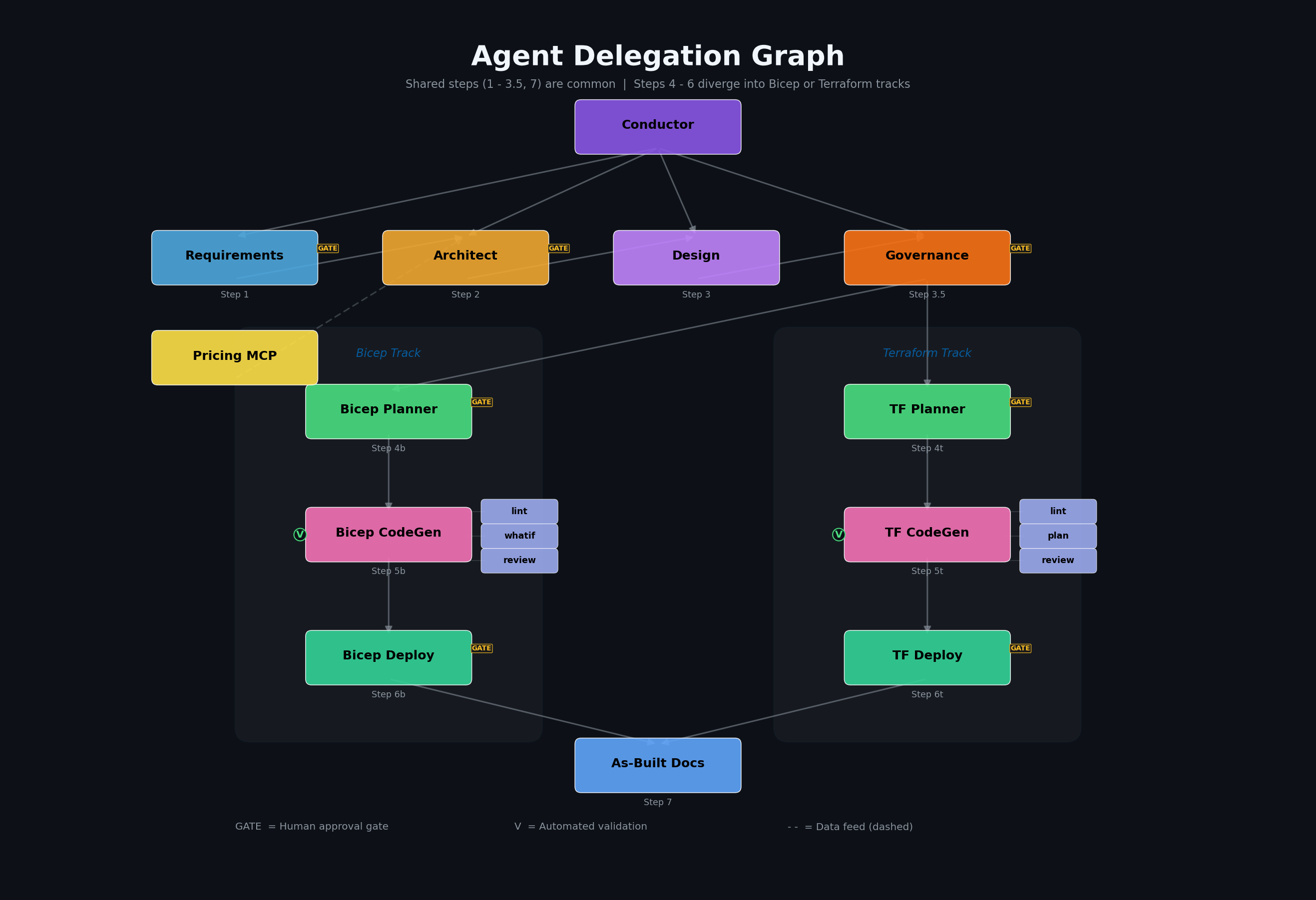

Agent roster

Primary orchestrator

The roster below describes retained step ownership. 01-Orchestrator coordinates approved step dispatch. Direct main-agent selection remains supported. This body migration does not retire the roster or certify every dispatch path.

Core agents (by workflow step)

Step	Owner	Main result
1: Requirements	`02-Requirements`	Requirements and initial SKU manifest
2: Architecture	`03-Architect`	Architecture assessment and cost evidence
3: Design, optional	`04-Design`	Diagrams and decision records
3.5: Governance	`04g-Governance`	Effective policy constraints
4: IaC plan	`05-IaC Planner`	Implementation plan and machine-readable contracts
5: IaC code	`06b-Bicep CodeGen` or `06t-Terraform CodeGen`	Code and `05-iac-handoff.json`
6: Deploy	`07b-Bicep Deploy` or `07t-Terraform Deploy`	Deployment and policy-precheck evidence
7: As-built	`08-As-Built`	Operational documentation based on observed results

Validation subagents

An owning agent can use the helper tools and subagents permitted by its definition. Inspect the Architecture Explorer for the pinned declarations. A main agent, including Challenger, must not be treated as one of those helpers.

Standalone agents

Use diagnostic and context-review agents for their declared tasks. They do not replace the workflow’s approvals or authorize mutations outside the selected task.

Approval gates

Before approving a transition, check the proposed artifact, unresolved findings, and what the next agent will do. Stop if requirements, costs, policy evidence, or resource scope are unclear.

Deployment requires explicit authorization for the proposed changes. A request to validate code is not permission to provision infrastructure. Routing diagnostics, an earlier candidate’s EXECUTE_VERIFIED result, model metadata, or an export archive do not establish approval. Live cleanup needs its own authorized scope and observed results.

Workflow steps

Step 1: requirements

Capture the workload and constraints in 01-requirements.md. Review the requirements before architecture. The step also starts the SKU manifest.

Step 2: architecture

Assess the design and cost feasibility. Review architecture and the cost estimate independently. The cost artifact is 03-des-cost-estimate.md, despite this being Step 2.

Step 3: design

Create optional diagrams and decision records when they help explain the design. Skipping this step does not skip governance.

Step 3.5: governance

Discover and reconcile the policy constraints that apply to the target scope. Preserve both the human-readable and machine-readable constraint artifacts.

Step 4: planning

Approve the implementation plan, resource choices, policy mapping, and deployment environment contract. CodeGen should not have to invent missing decisions.

Step 5: code generation

Select the CodeGen agent for the chosen IaC track. Review the generated code, deterministic validation results, and handoff artifact before deployment.

Step 6: deployment

Confirm scope, authorization, and current validation evidence. Check resource provisioning and application health separately. Report failures rather than substituting resources without approval.

Step 7: as-built documentation

Describe what exists, how it was verified, and what remains unresolved. A successful resource deployment does not establish a working application or compliance.

Complexity classification

Complexity can inform a review plan. It does not silently enable deep review or change the default review policy.

Adversarial review matrix

This matrix describes the existing review requirements, not an approved simplified target.

Step	Default Challenger review
Requirements	One comprehensive review
Architecture	One comprehensive architecture review plus a separate cost-feasibility review
Design	Optional
Governance	One reconciliation review when constraints exist
Plan	One comprehensive review
CodeGen	None by default; explicit opt-in
Deploy	None

Deep architecture or plan review requires explicit opt-in. The independent architecture cost-estimate review remains required. Deterministic validators still apply when no adversarial review runs. The proposal has one independent technical review path. Only an owner decision can change the currently mandatory separate architecture cost-feasibility review. No plan update repairs review counters, hashes, history, or unresolved findings.

Agents vs skills

An agent owns a selected task. A skill supplies task-specific instructions. A helper subagent performs permitted delegated work. A handoff asks the human to approve the next scope; the proposed Orchestrator then dispatches its worker. Direct agent selection remains an alternative, not a mandatory handoff step.

Quick reference

Using the orchestrator (recommended)

Select 01-Orchestrator, identify your project and current goal, and inspect the proposed next step.

Direct agent invocation

Select the named custom agent in Copilot Chat when you know which step owns the task. Provide the project and current evidence rather than asking it to skip dependencies.

Skill invocation

Use a user-invocable skill for its declared purpose. A skill request does not bypass the owning step’s contract or approval requirements.

Artifact naming convention

Most workflow records live in agent-output/{project}/. IaC lives under infra/bicep/{project}/ or infra/terraform/{project}/. Artifact prefixes are historical conventions and do not always match the producing step number. Use each step guide for exact outputs.

Next steps

Read the technical deep dive for context and state details. The April 2026 case study shows historical artifacts, not a validated current tutorial.
